Update FERC Attachment
The Update FERC Attachment form is used to update a FERC Attachment.

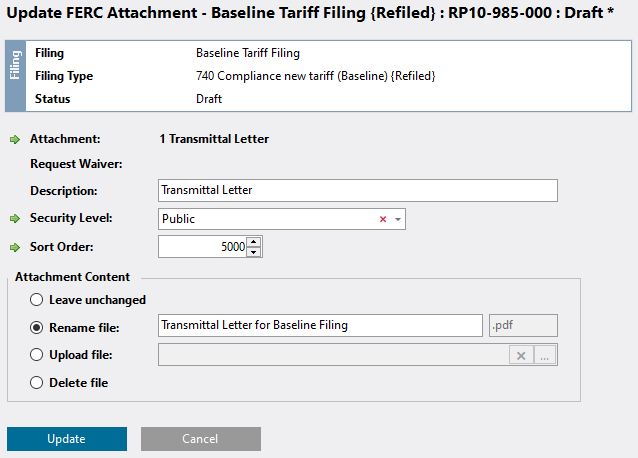

Figure 1: Update FERC Attachment form
Fields
| Field | Details | Required |
|---|---|---|
| Filing | The Title (or name) of the Filing | |
| Filing Type | Type of Filing in the form of (1) the Code, followed by (2) the Description, followed by (3) the Type (in curly braces) | |
| Status | Status of the Filing | |
| Attachment | Type of Attachment (in the form of FERC Attachment Reference Code followed by a brief description). This field cannot be updated on this form. | Yes |
| Request Waiver | A checkbox will appear if the Attachment selected is both required and waivable. This capability is built into FERC's eTariff specification, however, FERC has defined Filing Types and Attachments in practice such that none are actually required and waivable. Therefore, a checkbox will not appear. | |
| Description | Description of the FERC Attachment. Maximum field length 80. | |
| Upload File | Upload a file you wish to attach to the Filing. Browse to your file location via ellipsis button; or Drag and Drop from your desktop. | |
| Security Level | FERC Attachment Security Level may be set to "Critical Energy Infrastructure", "Privileged", or "Public". | Yes |
| Sort Order | A number between 1 and 2,147,483,648 that specifies the order in which FERC Attachments are placed into the FERC XML file. | Yes |
| Attachment Content | Select an option from the options below. | Yes |
| Leave unchanged | ||
| Rename file | When you rename a file, the file extension cannot be changed. | |
| Upload file | Browse to your file location via ellipsis button; or Drag and Drop from your desktop. | |
| Delete file | Select this option to delete the FERC Attachment's content file. |
Action Buttons
| Button | Details |
|---|---|
| Update | Updates the FERC Attachment |
| Cancel | Closes the form without updating the FERC Attachment |
