Update Tariff Record Version

The Update Tariff Record Version form is used to update an existing Tariff Record Version.

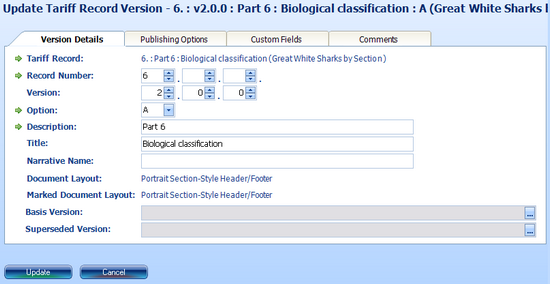

Figure 1:Update Tariff Record Version form, Version Details tab

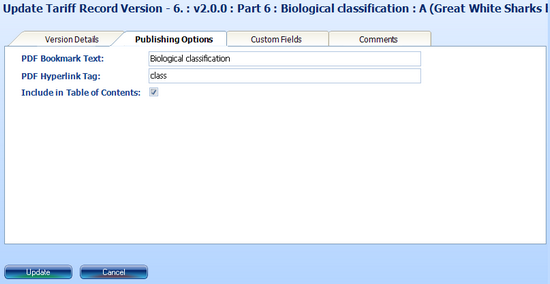

Figure 2:Update Tariff Record Version form, Publishing Options tab

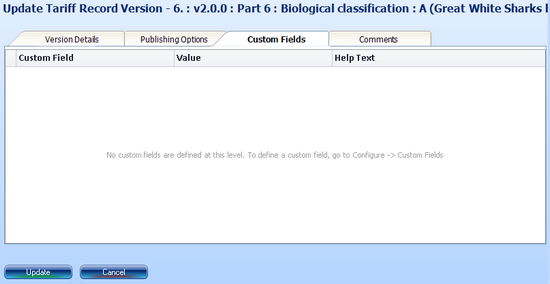

Figure 3:Update Tariff Record Version form, Custom Fields tab

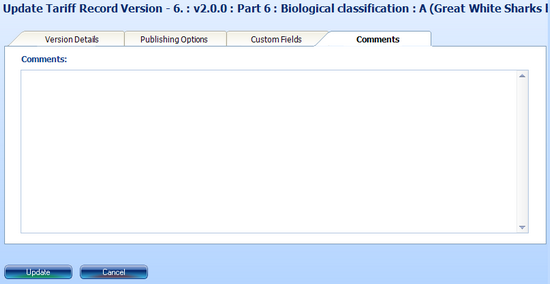

Figure 4:Update Tariff Record Version form, Comments tab

Fields

Version Details Tab

Tariff Record
Displays the Tariff Record under which the Tariff Record Version exists. This field cannot be changed.
Record Number
Record Number of the Tariff Record Version. For Sheet-based Tariffs, the first level is required; the rest are optional.
Version
Version number of the Tariff Record Version
Option
Option letter of the Tariff Record Version. Refer to FERC's OSEC eTariff Implementation Guide for complete details about options.
Description25
Description of the Tariff Record Version
Title60
Title of the Tariff Record Version
Narrative Name254
Narrative Name of the Tariff Record Version. This field is primarily used for sheet based tariffs to send FERC the old-style sheet pagination (e.g. Substitute Third Revised Sheet No. 12).
Document Layout
Document Layout for the Tariff Record Version. The document that defines the layout is used as the starting point of the Tariff Record Version's content when the document is first created. The Document Layout's Header Template and Footer Template are applied to the Tariff Record Version's content each time the content is saved. You must use the Build Content wizard in order to change a Tariff Record Version's Document Layout.
Marked Document Layout
Marked Document Layout for the Tariff Record Version. The document that defines the layout is used as the starting point of the Tariff Record Version's content when the document is first created. The Document Layout's Header Template and Footer Template are applied to the Tariff Record Version's content each time the content is opened. You must use the Build Content wizard in order to change a Tariff Record Version's Document Layout.
Basis Version
Tariff Record Version that was used as the starting point for the marked content
A popup dialog (Figure 4) is used to select a Tariff Record Version that was used as the starting point for the marked content. Select a Tariff Record from the drop down list and then a TRV from the grid and click the "Select" button. In order to remove the Basis Version selection, click the "Clear" button.

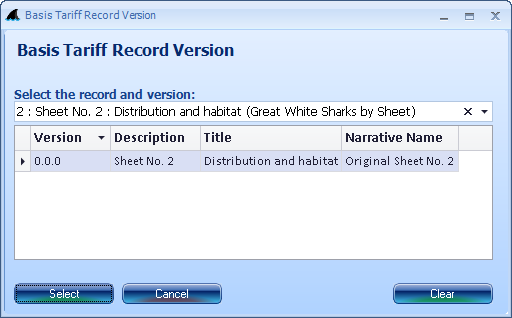

Figure 4:Select Basis Tariff Record Version dialog


Superseded Version
Tariff Record Version that is being replaced by this one
A popup dialog (Figure 5) is used to select a Tariff Record Version that is being replaced. Select a Tariff Record from the drop down list and then a TRV from the grid and click the "Select" button. In order to remove the Superseded Version selection, click the "Clear" button.

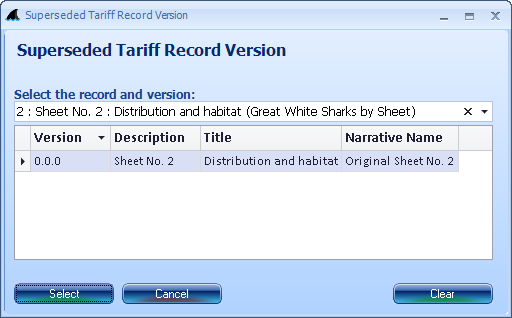

Figure 5:Select Superseded Tariff Record Version dialog


Publishing Options Tab

PDF Bookmark Text127
When this TRV is published as part of a Tariff, the PDF Bookmark Text is what will appear in the list of bookmarks in the PDF reader when the published Tariff is viewed.
PDF Hyperlink Tag127
Use PDF Hyperlink Tag to set a bookmark for this TRV in the published Tariff. This will enable you to jump from an external link, such as on a website, to this spot in the Tariff.
Include in Table of Contents
Indicates whether or not the Tariff Record Version will be included in the Table of Contents when the Tariff is published. The text that appears in the table of contents is determined by the publishing options established at the Tariff level.

Custom Fields Tab

Custom Field
This is the Name of the Custom Field.
Value
Enter a Custom Field value right into the grid for the Tariff Record Version being updated.
Help Text
This is the Help Text of the Custom Field.

Comments Tab

Commentsn/a
Comments for the Tariff Record Version

Action Buttons

Update
Updates the Tariff Record Version
Cancel
Closes the form without updating the Tariff Record Version
